TYPE B (U)

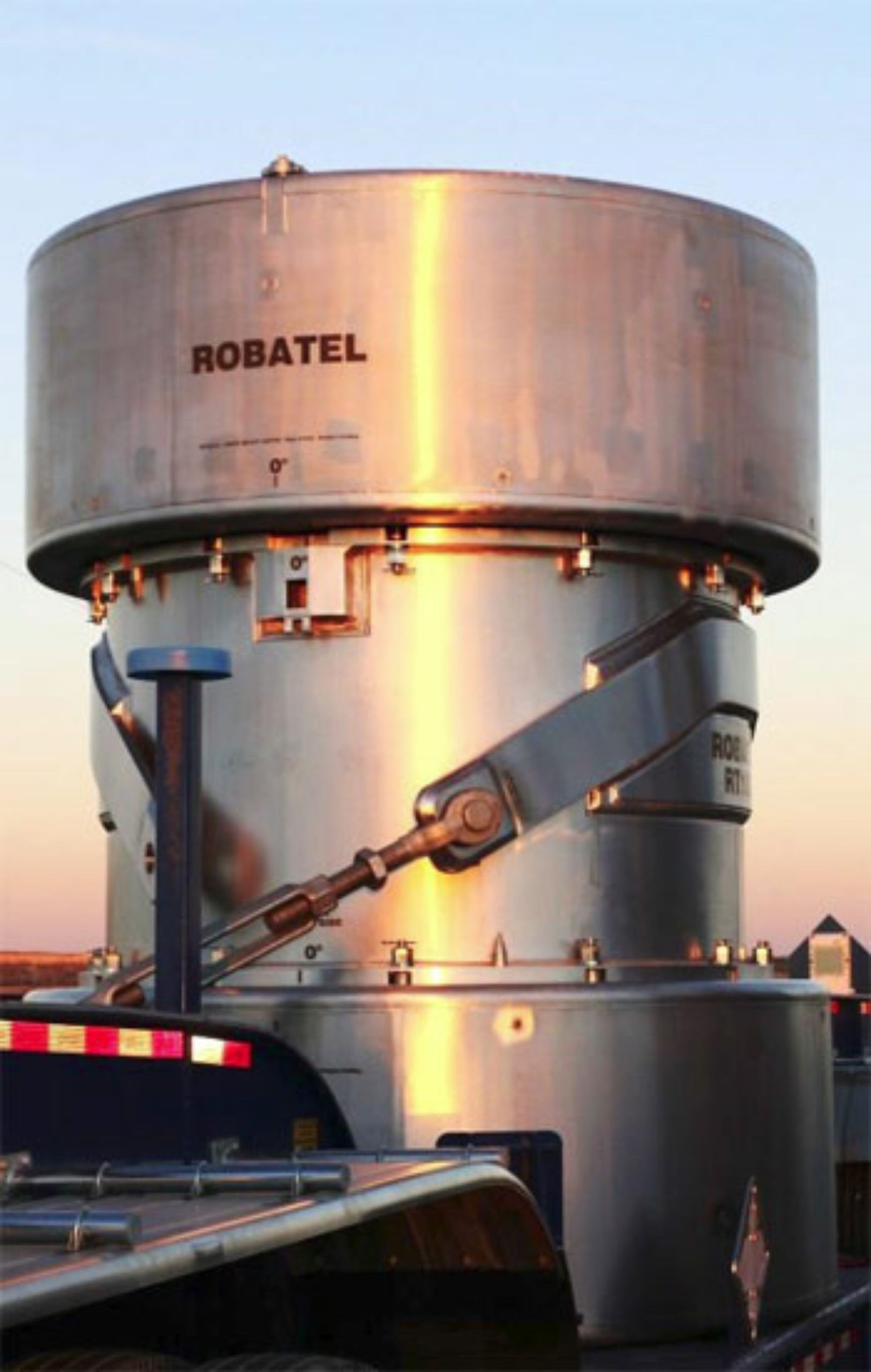

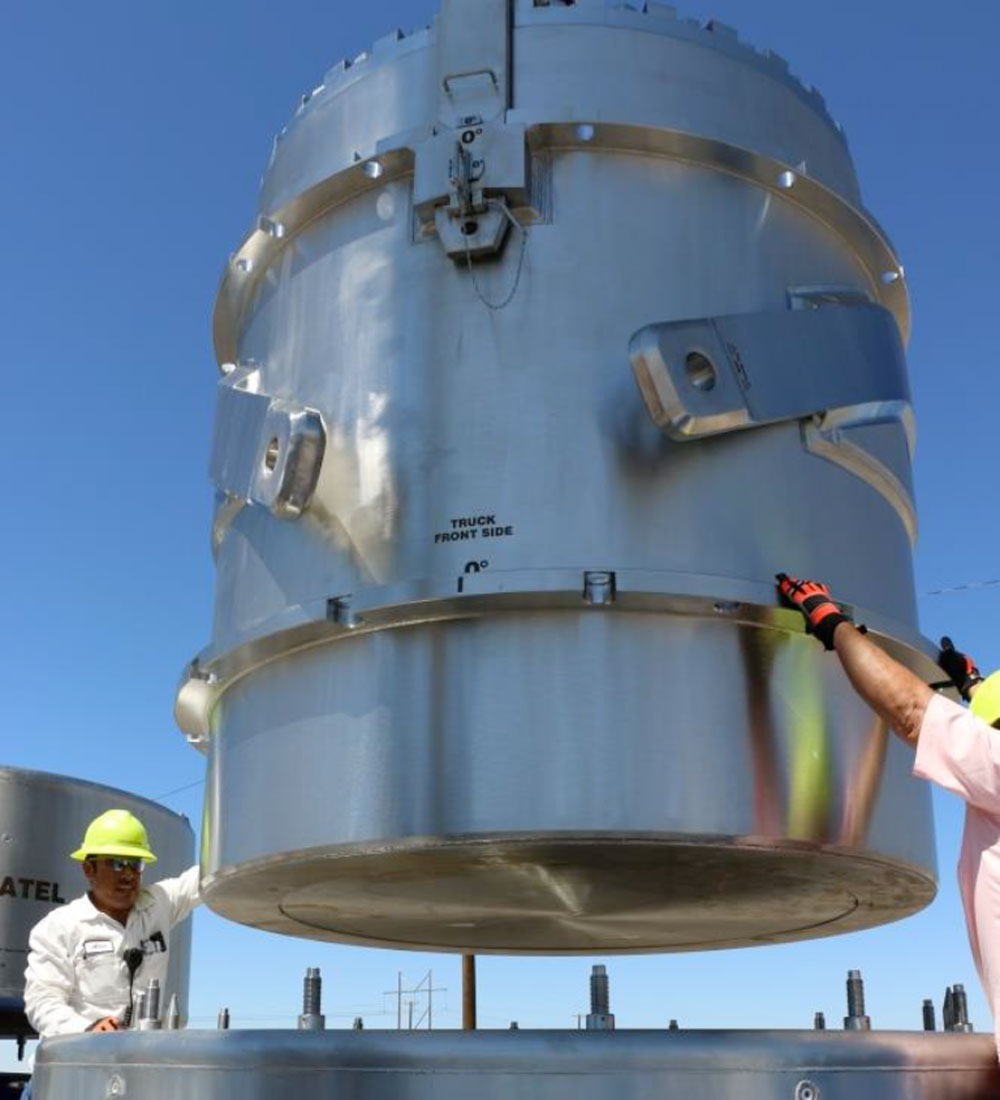

RT100
Certifié par l’autorité de sûreté nucléaire Américaine US-NRC , numéro de dossier USA/9365/B (U) -96 71-9365-colis de matériel radioactif.
1 Manufactured copy
Applications
Type B(U) fissile packaging for international transport of highly irradiated fuel rods from PWR nuclear power plants to research laboratories.
ASN certificate for the transport of irradiated fuel.
- Designed for transporting fuel rods (or portions of rods) of PWR 900 or 1300 MWe (UO2 or MOX) or activated metal parts.
- High activity and thermal energy
- 100% compatible with PWR and MOX fuels.
- modular internal fittings according to the types of fuel.
- Loading and unloading possible under water, unloading in cell docking, in vertical or horizontal position.
- Double containment enclosure.
Specifications
Here are all the specs about the transportation casks RT100.
Principales dimensions de l'emballage :
(avec capots)
- Height: 3,320 mm (131')
- Diameter: 2587mm (8.5')
- Total mass (laden): 41,500 kg (91,491 lbs)
Loading capacities
- Cavity height: 1,956 mm (77")
- Cavity diameter: 1730 mm (68")
- Permissible mass (laden): 6,804 kg (15,000 lbs)
- Maximum radiation protection: 500 R/hr
- Maximum activity: 3000 A2
Biological protections:
(lead equivalent)
- Lateral: 135 mm (5,2’’)
Certifications :
(France + Validations à l’étranger)
- USA/9365/B(U)-96
