LA HAGUE SITE PACKAGING

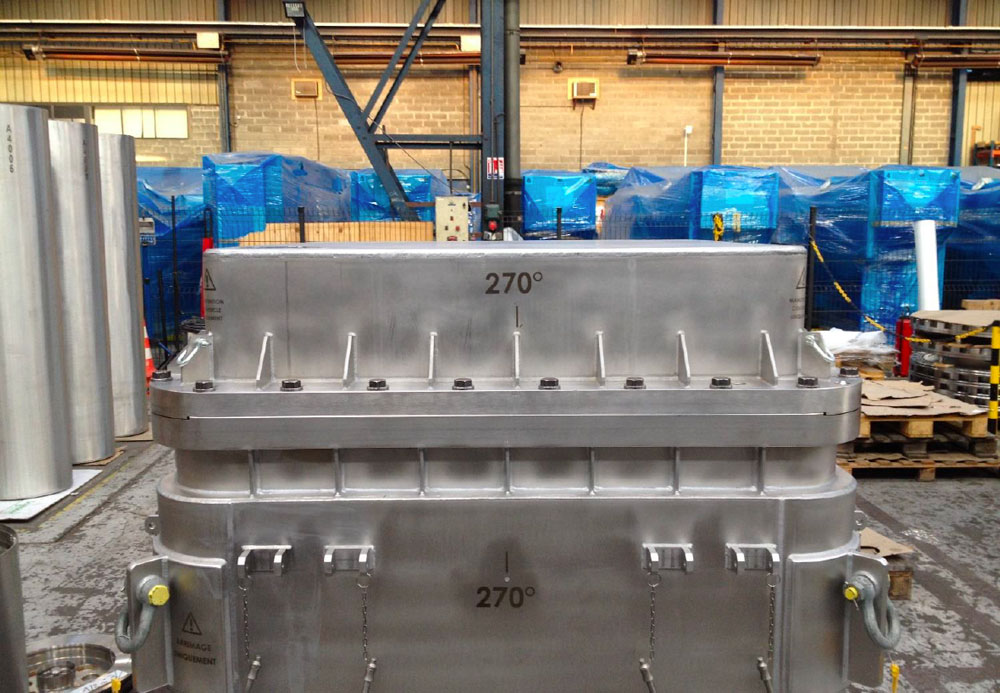

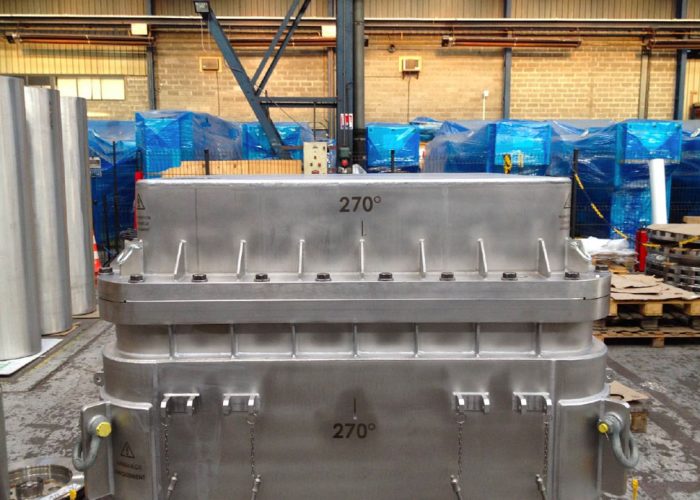

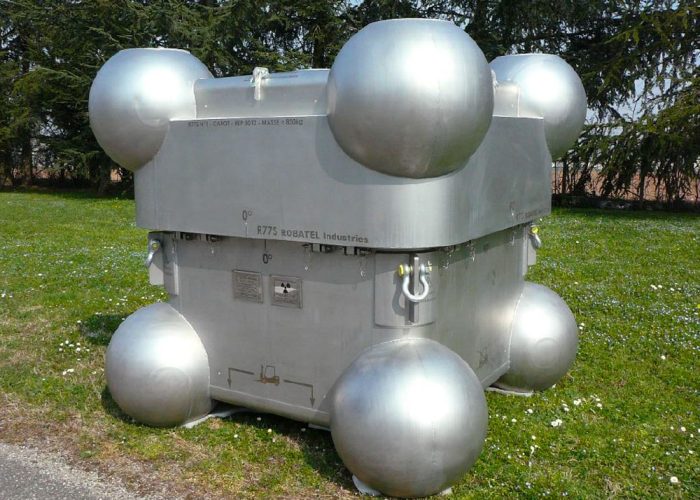

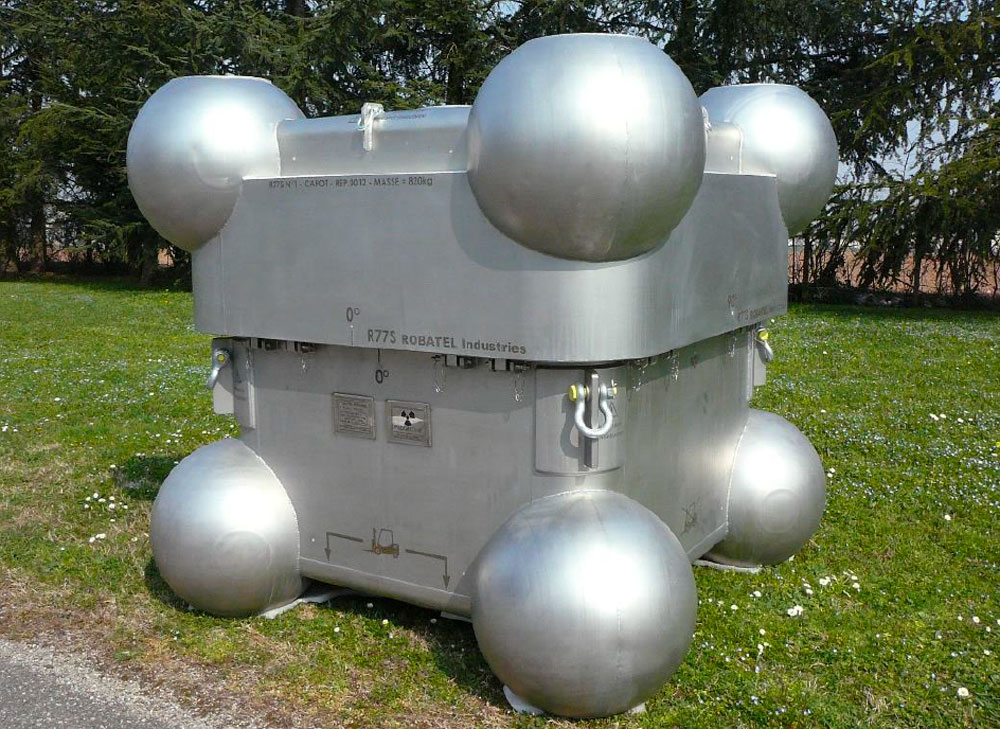

R77S
Certified according to the rules for the internal transport of radioactive materials at the AREVA La Hague facility (type B equivalent with convoy speed limited to 25 km/h).
1 Manufactured copy
Applications
Transport of alpha waste
- Designed for the transport of 1 to 4 drums of alpha waste.
- Versatile inner basket can handle four types of drums: 118L, 120L, 440L and 460L (30 gal and 120 gal).
Specifications
Here are all the specs about the transportation casks R77S.
Main packaging dimensions:
(with covers)
- Height: 1702mm (5.6')
- Width: 1876mm (6.1')
- Total mass (laden): 3,500 kg (7716 lbs)
Loading capacities
- Cavity height: 1,220 mm (4’)
- Cavity width: 1,140 mm (3.7’)
- Permissible mass: 725 kg (1,600 lbs)
- Maximum activity: 20,000 A2
- DDmax barrel contact: 12mSv/h
Certification
(équivalent plomb)
- ORANO internal transport approval
