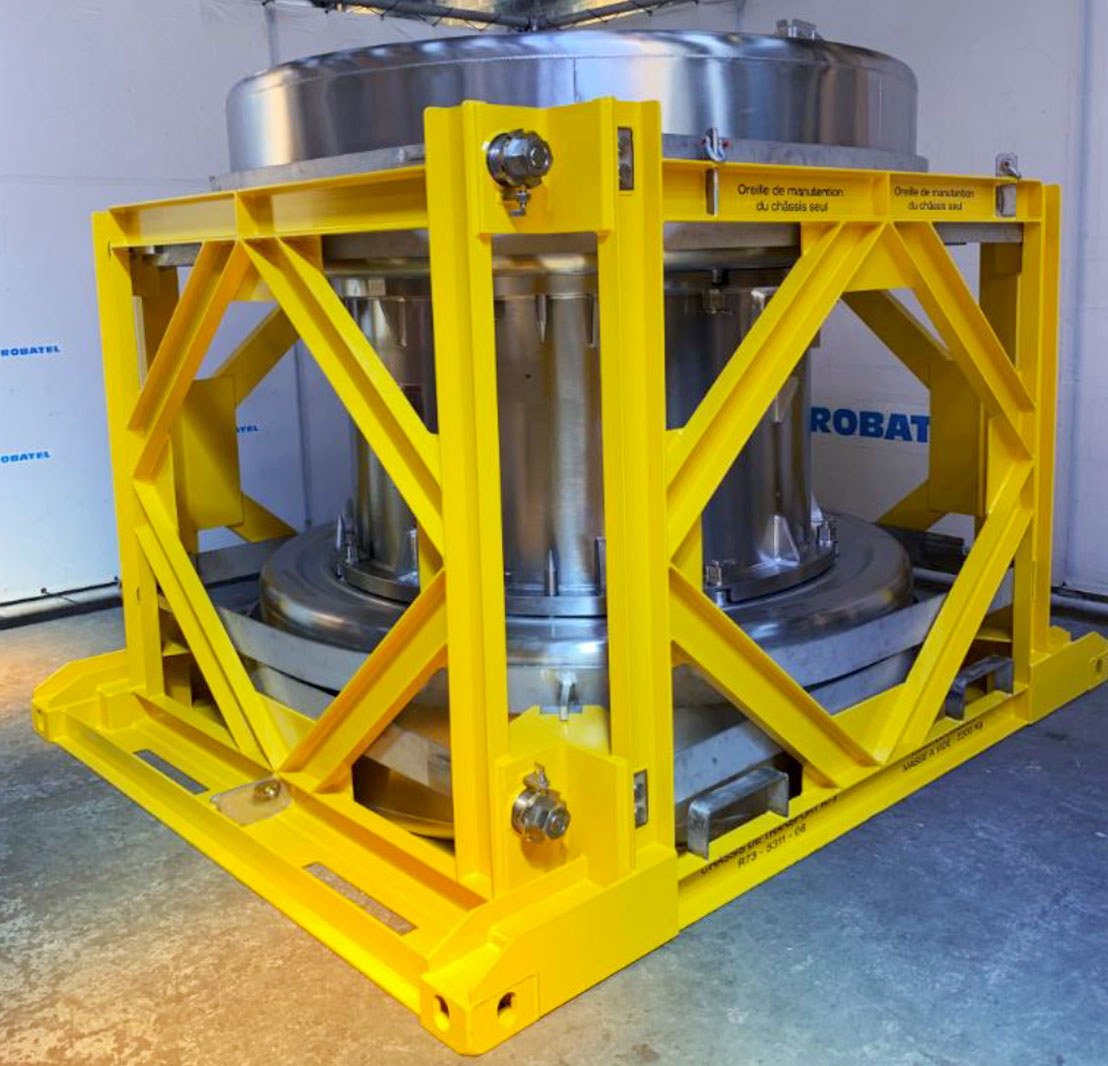

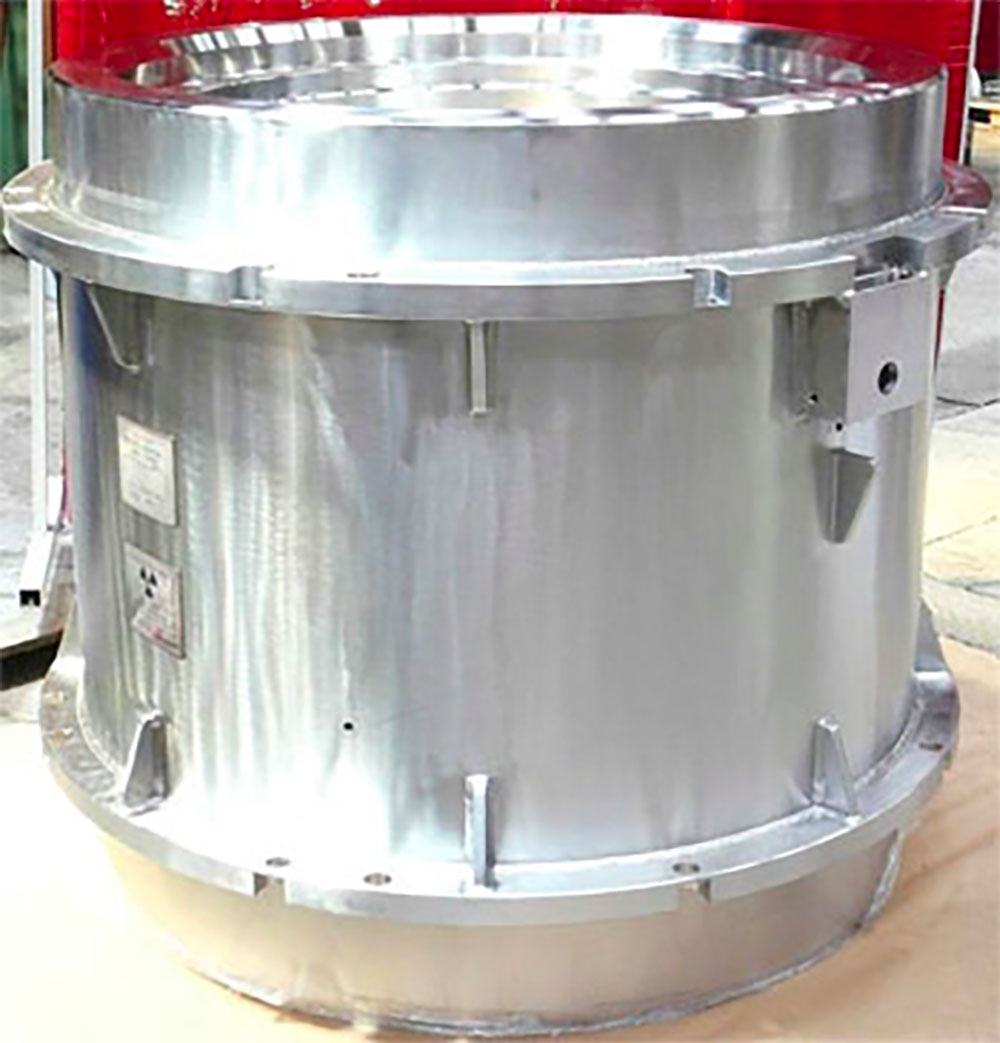

TYPE B (U)
R73
Certified by the IAEA, UN No. 2916 Type B (U) radioactive waste packages; by road-ADR or by rail-RID.
1 Manufactured copy
Applications
Metal scrap.
- Designed to transport metal parts of intermediate activity.
- Radioactive waste is loaded in bulk into metal baskets.
- Can be filled in a cell or with the cell lock interface.
Specifications
Here are all the specifications regarding the transportation casks R73.
Main packaging dimensions:
(with covers)
- Height: 2,370mm (7.8')
- Diameter: 2210mm (7.3')
- Total mass (laden): 23,900 kg (52,690 lbs)
Loading capacities :
- Cavity height: 935 mm (3’)
- Cavity diameter: 1,040 mm (3.4’)
- Permissible mass: 2,250 kg (4,970 lbs)
- Maximum activity: 12700 TBq / 6500 A2
- Maximum γ activity: 2000 TBq/1TBq/kg (Co60 equivalent)
Biological protections:
(lead equivalent)
- Lateral: 220 mm (8.6’’)
Certifications :
(France + Validations à l’étranger)
- UN 2916 - Type B(U): ADR + RID
